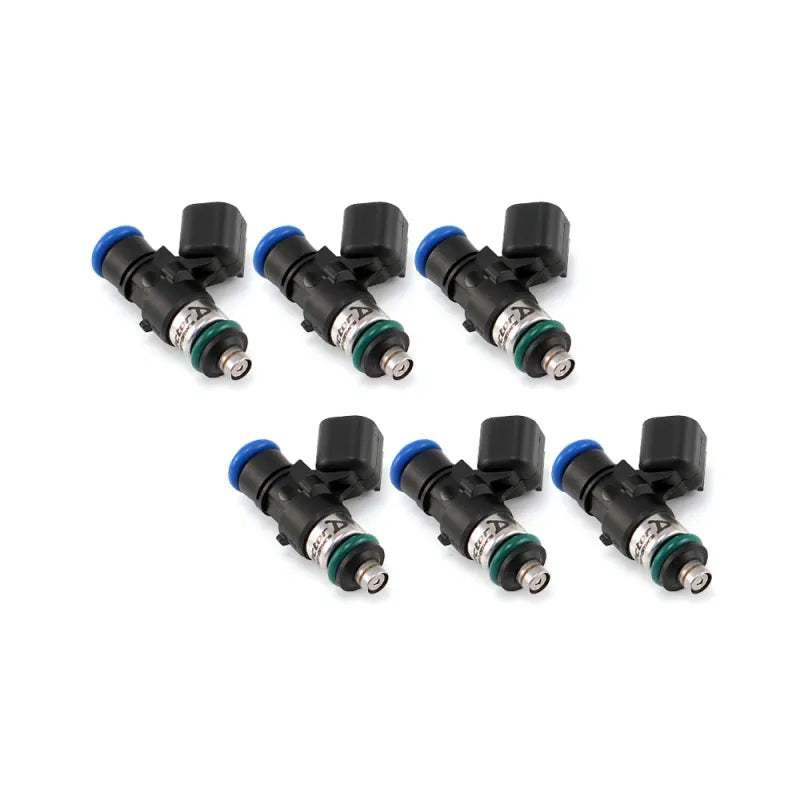

Injector Dynamics ID1750-XDS Fuel Injectors

The Injector Dynamics ID1750-XDS is the successor to the highly regarded ID1700-XDS, bringing further improvements to Injector Dynamics’ high-flow motorsport injector platform.

Developed for demanding high-horsepower and alternative-fuel applications, the ID1750-XDS delivers a 1728cc/min nominal flow rate while maintaining the exceptional fuel compatibility and corrosion resistance the ID1700-XDS became known for.

Compared with its predecessor, the ID1750-XDS provides a higher dynamic flow rate without increasing minimum fuel mass, improved cylinder-to-cylinder balance at low pulsewidths and improved pressure sensitivity.

Designed primarily for applications requiring substantial fuel delivery, the ID1750-XDS is particularly well suited to ethanol-fuelled, boosted and extreme high-horsepower builds.

Key Features

• 1728cc/min nominal flow rate at 3.0 Bar (43.5 psi)
• Successor to the ID1700-XDS
• Higher dynamic flow rate with no increase in minimum fuel mass
• Improved cylinder-to-cylinder balance at low pulsewidths
• Improved pressure sensitivity
• Corrosion-resistant construction
• Designed for high-flow motorsport applications
• Excellent compatibility with ethanol and other alternative fuels
• Maximum differential fuel pressure of 7.0 Bar / 101.5 psi
• USCAR electrical connector
• Suitable for compatible high-horsepower fuel systems

Fuel Compatibility

The ID1750-XDS is compatible with a broad range of automotive and motorsport fuels, including:

• Methanol
• Ethanol
• MTBE
• Nitromethane
• Known hydrocarbon-based automotive fuels

Its corrosion-resistant construction makes it particularly suitable for performance vehicles regularly operating on ethanol and other alternative fuels.

Technical Specifications

Nominal Flow Rate: 1728cc/min @ 3.0 Bar (43.5 psi)
Test Fuel: E10 emissions certification fuel at 49°C (120°F)
Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
Electrical Connector: USCAR
Fitment: Universal

Application Considerations

The ID1750-XDS is designed primarily for applications where very high fuel flow is required, particularly boosted engines operating on ethanol-based fuels.

Due to its high-flow characteristics, Injector Dynamics specifically positions smaller injectors such as the ID1300-XDS as the more appropriate choice where exceptional gasoline idle and low-flow drivability are a priority.

Fitment

This is a universal-fit performance fuel injector and may require additional components or modification depending on the application.

Injector length, upper and lower O-ring dimensions, electrical connector and fuel-system configuration should be confirmed before ordering.

For vehicles using direct injection from the factory, including BMW S58 applications, these injectors are not replacements for the factory direct injectors. They may be used as part of a compatible aftermarket port-injection/MPI system where the injector and fuel rail specifications are suitable.

Important Information

This product is intended for performance use and should be installed by a qualified professional.

It is the customer’s responsibility to ensure compatibility with their specific vehicle prior to purchase. If you are unsure, please contact us before ordering.

Gridline Custom Motorsports is not responsible for issues arising from incorrect installation, misuse, or improper product selection.

Due to the nature of performance parts, some items may be special order and subject to supplier availability and lead times.
