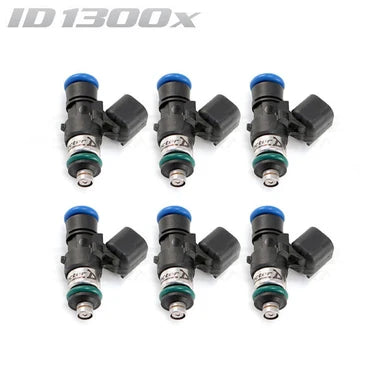

Injector Dynamics ID1300x Fuel Injectors
The Injector Dynamics ID1300x is a high-flow motorsport fuel injector developed in partnership with Bosch Motorsport, designed specifically around the requirements of high-performance and alternative-fuel applications.
Featuring all-stainless internal components, the ID1300x was engineered with ethanol and other alternative fuels in mind, providing excellent resistance to the corrosive properties associated with alcohol-based fuels.
Despite its high-flow capability, the ID1300x maintains precise low-flow control, allowing it to deliver excellent idle and cruise characteristics when running gasoline. Its compact body also allows compatibility across a wide range of performance applications.
Key Features
- 1335cc/min nominal flow rate at 3.0 Bar (43.5 psi)
- Developed in partnership with Bosch Motorsport
- All-stainless internal construction
- Designed specifically with ethanol and alternative fuels in mind
- Compatible with all known fuels
- Excellent low-flow control for gasoline operation
- Compact injector body for broad application compatibility
- Maximum differential fuel pressure of 7.0 Bar / 101.5 psi
- USCAR electrical connector
- Suitable for compatible high-performance and motorsport fuel systems
Technical Specifications
Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi)
Test Fluid: Iso-Octane at 52°C (125°F)
Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
Fuel Compatibility: Compatible with all known fuels
Electrical Connector: USCAR
Fitment: Universal
Fitment
This is a universal-fit performance fuel injector and may require additional components or modification depending on the application.

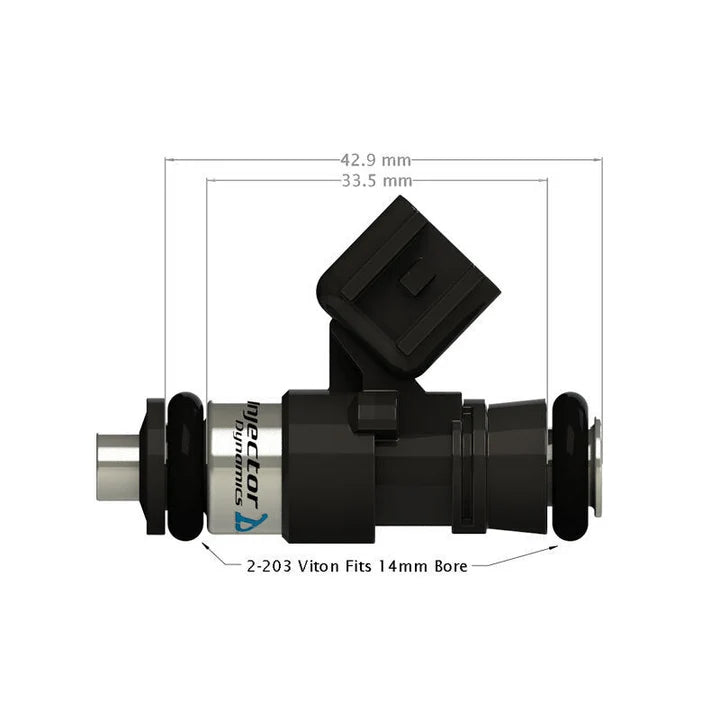

Injector length, upper and lower O-ring dimensions, electrical connector and fuel-system configuration should be confirmed before ordering.
For vehicles using direct injection from the factory, including BMW S58 applications, these injectors are not a replacement for the factory direct injectors. They may be used as part of a compatible aftermarket port-injection/MPI system where the injector specifications and fuel rail configuration are suitable.
Important Information
This product is intended for performance use and should be installed by a qualified professional.
It is the customer’s responsibility to ensure compatibility with their specific vehicle prior to purchase. If you are unsure, please contact us before ordering.
Gridline Custom Motorsports is not responsible for issues arising from incorrect installation, misuse, or improper product selection.
Due to the nature of performance parts, some items may be special order and subject to supplier availability and lead times.
