Injector Dynamics ID1050x Fuel Injectors
Injector Dynamics ID1050-XDS 34mm Injectors – Set of 6
The Injector Dynamics ID1050-XDS represents the evolution of the proven ID1000 platform, engineered as a purpose-built motorsport fuel injector for high-performance applications.
Developed through the collaboration between Injector Dynamics and Bosch Motorsport, the ID1050-X is not simply a modified production injector. It has been developed specifically around the requirements of performance and motorsport tuning, delivering increased flow capability while maintaining precise control at lower flow rates.

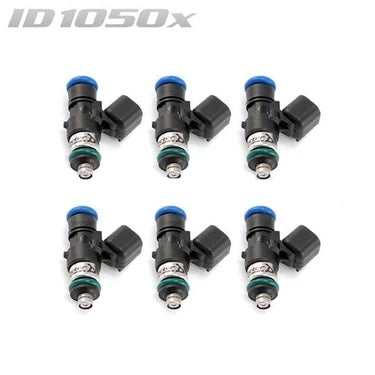

This particular configuration features a 34mm compact body with 14mm upper and 14mm lower O-rings and is supplied as a matched set of six injectors.
Key Features
Purpose-Built Motorsport Injector
Designed specifically for performance applications rather than being adapted from a standard production injector.
1065cc/min Nominal Flow Rate
Rated at 1065cc/min at 3.0 bar (43.5 psi) using gasoline at 52°C.
High Fuel Pressure Capability
An upgraded magnetic circuit provides stable operation at differential fuel pressures of up to 10 bar / 145 psi.
Broad Fuel Compatibility
Corrosion-resistant internal components provide compatibility with all known fuels and are designed to improve service life when used with corrosive fuels.
Improved Internal Flow Path
The revised internal flow path provides approximately 5% greater output than the original ID1000 without sacrificing low-flow performance.
Compact 34mm Body
The compact injector body allows compatibility across a wide variety of applications requiring short-body injectors.
Replaceable Inlet Filter
A serviceable inlet filter helps extend injector service life.
Technical Specifications
- Manufacturer: Injector Dynamics
- Model: ID1050-XDS / ID1050-X
- SKU: 1050.34.14.14.6
- Quantity: Set of 6

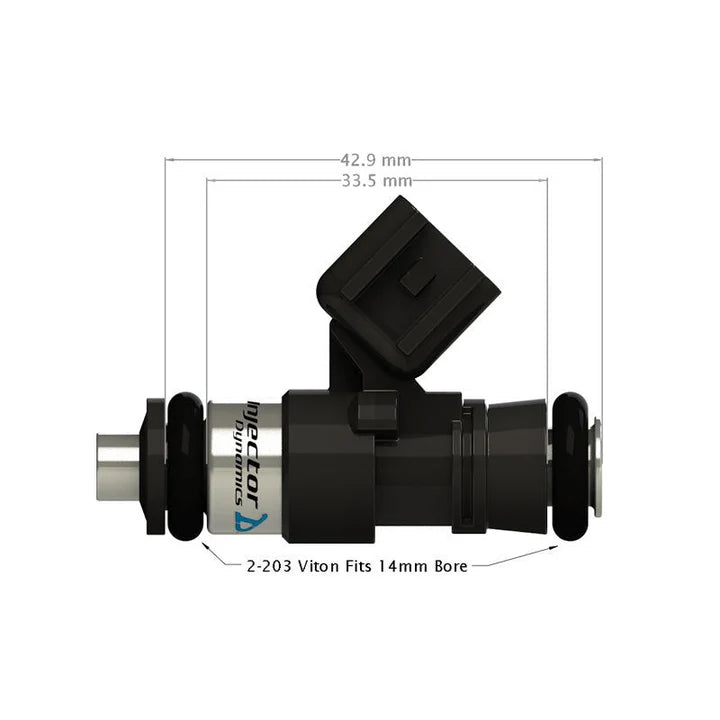

- Body Length: 34mm
- Upper O-Ring: 14mm
- Lower O-Ring: 14mm
- Nominal Flow: 1065cc/min @ 3.0 bar (43.5 psi)
- Maximum Differential Fuel Pressure: 10 bar (145 psi)
- Electrical Connector: USCAR
- Fuel Compatibility: All known fuels
Fitment
This is a universal-fit performance injector and correct compatibility depends on the fuel rail, manifold and injector configuration being used.
Injector Dynamics notes that some vehicles may support multiple injector sizes, so the 34mm length and 14mm upper/lower O-ring dimensions should be confirmed against the intended application before ordering.
Important Information
This product is intended for performance use and should be installed by a qualified professional.
It is the customer’s responsibility to ensure compatibility with their specific vehicle prior to purchase. If you are unsure, please contact us before ordering.
Gridline Custom Motorsports is not responsible for issues arising from incorrect installation, misuse, or improper product selection.
Due to the nature of performance parts, some items may be special order and subject to supplier availability and lead times.
