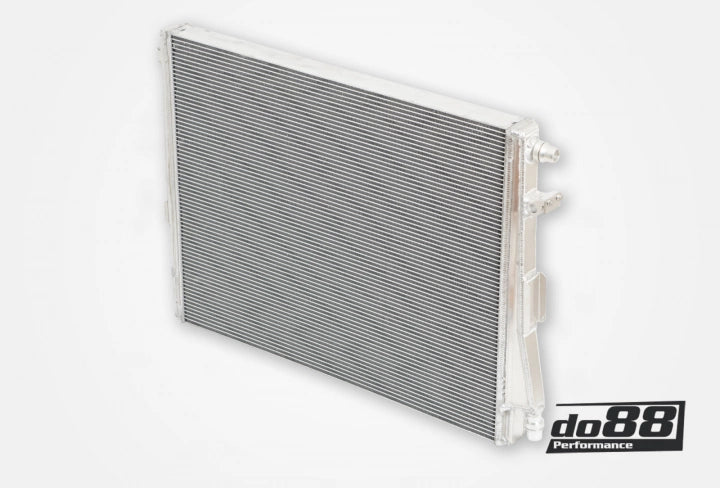

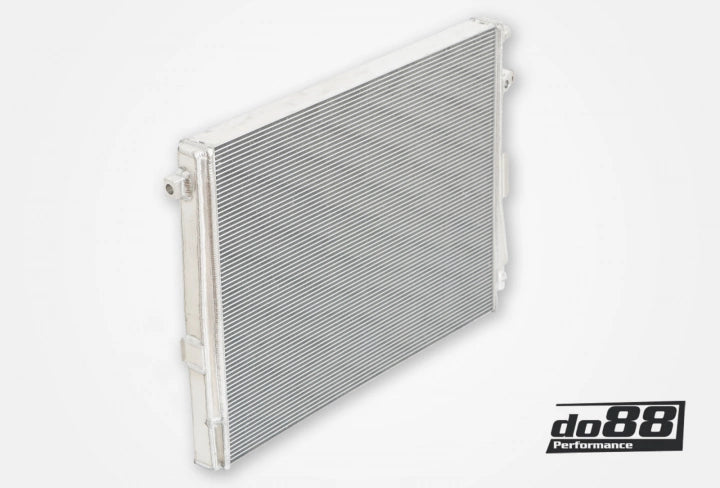

do88 Front Intercooler Radiator | BMW G8X M2 M3 M4

Improve the cooling performance and consistency of your S58-powered BMW with the do88 Front Intercooler Radiator, engineered to increase the efficiency of the factory water-to-air charge cooling system under demanding driving conditions.

Designed for the BMW G8X platform, the do88 radiator increases cooling capacity, coolant volume and heat dissipation while retaining a direct-fit installation using the vehicle’s factory mounting locations.

Improved S58 Charge Air Cooling

The BMW S58 uses a water-to-air charge cooling system, with coolant circulating between the charge cooler and a front-mounted heat exchanger.

As power levels and sustained engine loads increase, the factory cooling system can become susceptible to heat soak. Rising intake air temperatures can reduce performance consistency as the ECU compensates for excessive temperatures.

The do88 Front Intercooler Radiator has been developed to provide significantly greater cooling capacity, making it particularly suited to tuned, high-performance and track-driven S58 vehicles.

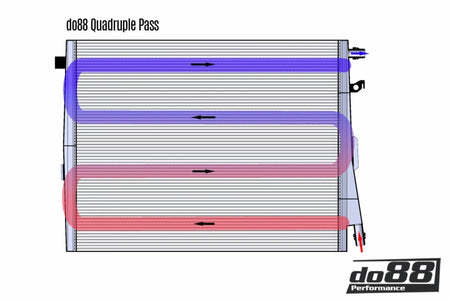

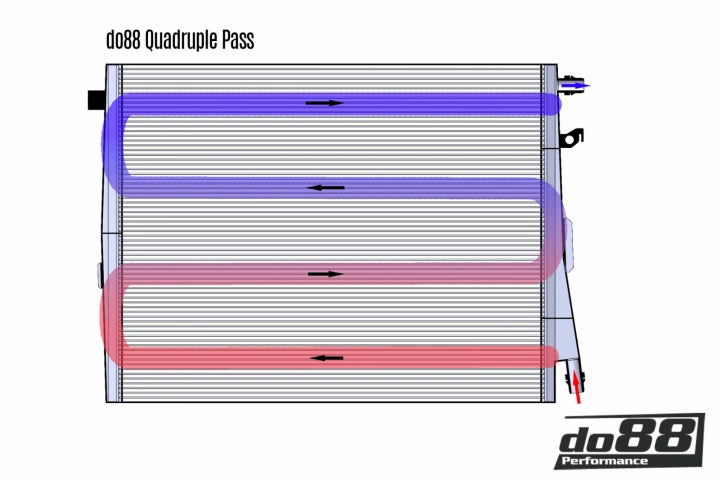

Quad-Pass Cooling Design

Unlike the factory radiator’s two-pass arrangement, the do88 radiator features a quad-pass coolant flow design.

This routes coolant through the core four times, increasing its contact with the available cooling surface and improving heat transfer before the coolant returns to the charge cooling system.

Combined with the larger core, this provides substantially greater thermal capacity for demanding applications.

Larger High-Performance Core

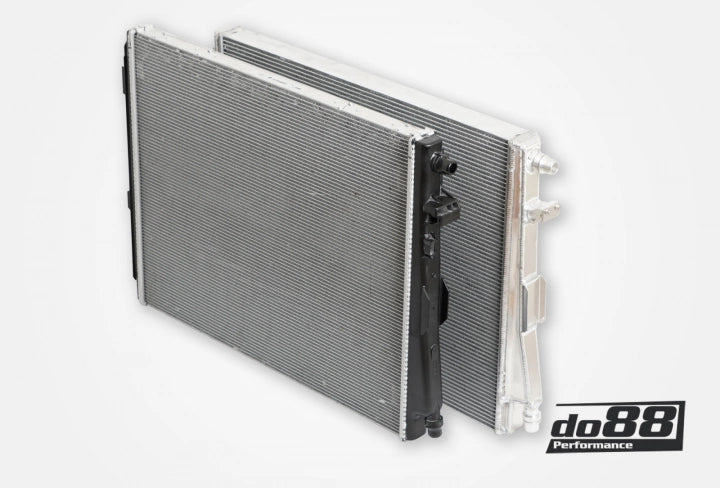

The do88 radiator features a 39% larger core volume than the factory unit, together with a 48 mm thick two-row core.

External tube area is increased by approximately 9%, providing additional active cooling surface while carefully designed cooling fins maintain airflow through to the engine radiator positioned behind it.

Full Aluminium Construction

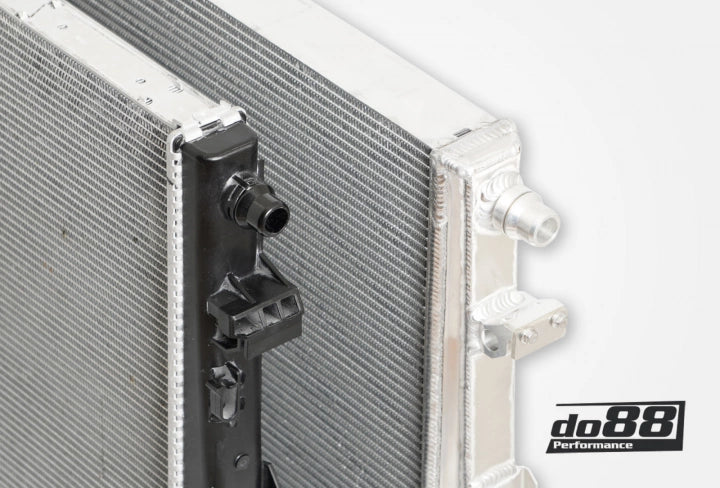

The factory plastic components are replaced with a robust all-aluminium construction.

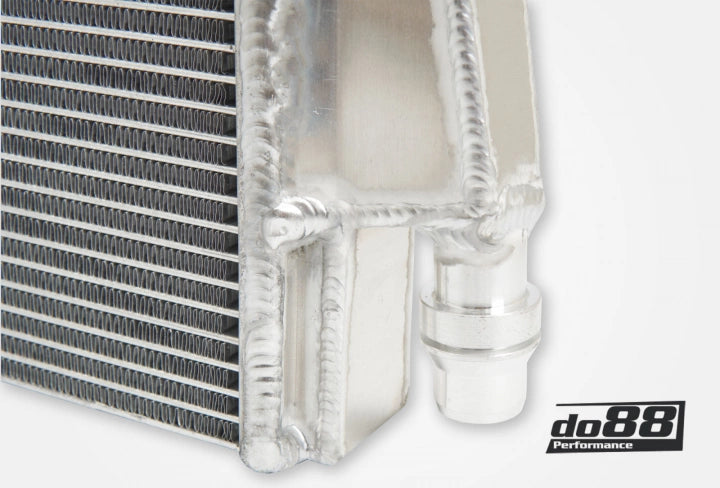

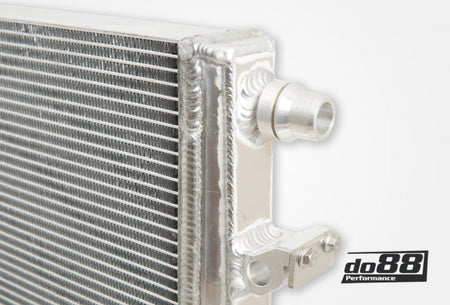

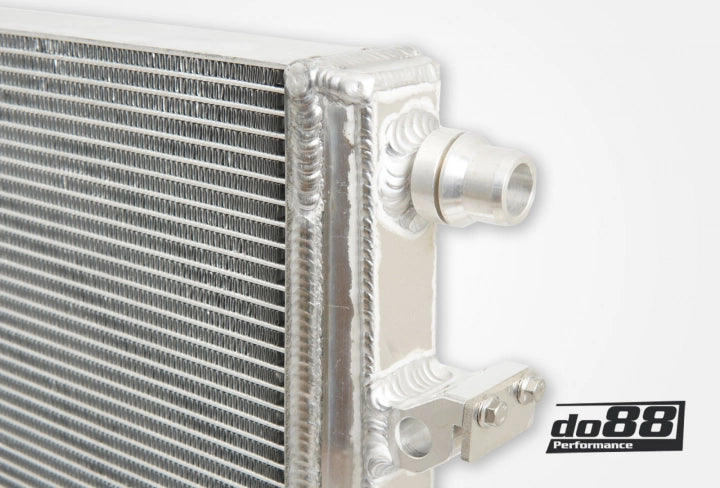

The radiator incorporates aluminium end tanks, core and CNC-machined connections, with the assembly TIG welded for improved strength and durability.

This construction is particularly beneficial for modified vehicles operating under increased thermal and performance demands.

Key Features

• 39% larger core volume compared with the factory radiator
• 48 mm thick two-row core
• Approximately 9% greater active cooling area
• Quad-pass coolant flow design
• Increased 5 mm cooling fin height
• Full aluminium construction
• TIG-welded aluminium end tanks
• CNC-machined connections
• Approximately 1.4 litres additional coolant capacity
• Increased heat dissipation capability
• Designed to reduce charge cooling system heat soak
• Compatible with manual and automatic transmission vehicles

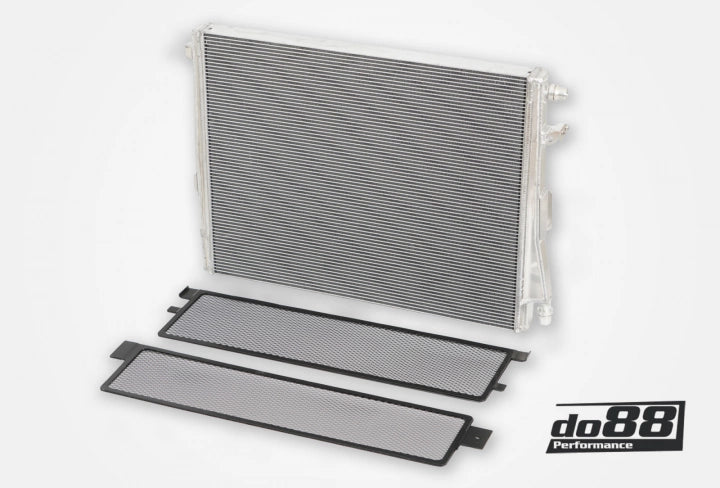

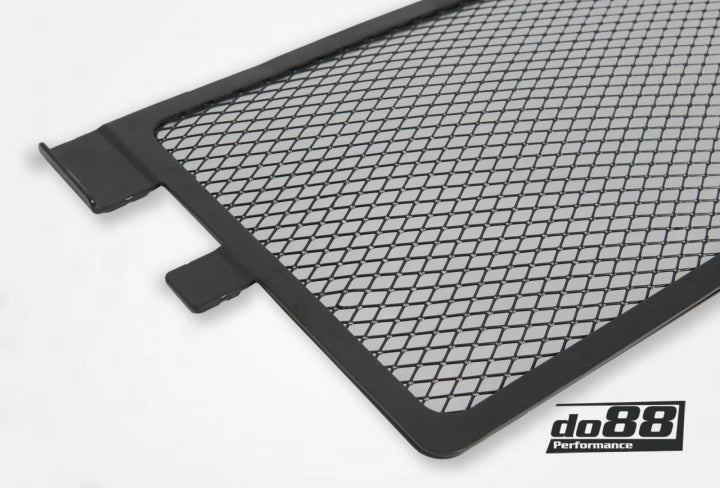

• Includes custom rock guards for protection against road debris
• Designed for straightforward installation using factory mounting points

Vehicle Compatibility

Designed for 2021+ BMW G8X S58 applications, including:

• BMW M2 G87
• BMW M3 G80
• BMW M3 Touring G81
• BMW M4 G82
• BMW M4 Convertible G83

Always confirm compatibility with your specific vehicle before ordering.

Important Information

This product is intended for performance use and should be installed by a qualified professional.

It is the customer’s responsibility to ensure compatibility with their specific vehicle prior to purchase. If you are unsure, please contact us before ordering.

Gridline Custom Motorsports is not responsible for issues arising from incorrect installation, misuse, or improper product selection.

Due to the nature of performance parts, some items may be special order and subject to supplier availability and lead times.
